ASME B16.20 Type R Ring Gasket
ASME B16.20 Type R ring gaskets are basic octagonal or oval ring-type joint (RTJ) gaskets used with API 6B and ASME B16.5/B16.47 RTJ flanges. They are manufactured according to a specific profile and hardness to ensure metal-to-metal sealing under high pressure.
Types: Oval or Octagonal
Materials: Soft iron, carbon and low alloy steels, stainless steels, and other CRAs
Standards: API 6A, ASME B16.20
ASME B16.20 Type R ring gasket is a metal RTJ gasket designed to create a high-integrity, metal-to-metal seal in RTJ flanges.
It is compressed into the groove of an RTJ flange, where the gasket undergoes controlled deformation, forming a tight and leak-proof seal even under extreme conditions.
The Type R gasket is the original and most common RTJ design, used extensively across industries that require reliable sealing in critical operations.
Types of ASME B16.20 Type r Ring Gaskets
Oval Ring Gasket
- Traditional oval-shaped cross section.
- Provides a reliable metal-to-metal seal.
- Fits only oval-shaped RTJ grooves.
- Used in older installations or where oval grooves are specified.
Octagonal Ring Gasket
- Most commonly used Type R gasket.
- Octagonal cross section improves sealing efficiency.
- Fits modern standard RTJ grooves (both octagonal and some oval-compatible grooves).
- Provides better pressure resistance and tighter sealing than oval type.
ASME B16.20 Type r Ring Gaskets Dimensions
| Ring Number | Average Pitch Diameter of Ring, P | Width of Ring, A | Height of Ring, Oval B | Height of Ring, Octagonal H | Height of Ring, C | Height of Ring, R1 |
|---|---|---|---|---|---|---|
| R-11 | 34.14(1.344) | 6.35(0.250) | 11.2(0.44) | 9.7(0.38) | 4.32(0.170) | 1.5(0.06) |
| R-12 | 39.70(1.563) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-13 | 42.88(1.688) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-14 | 44.45(1.750) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-15 | 47.63(1.875) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-16 | 50.80 (2.000) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-17 | 57.15(2.250) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-18 | 60.33(2.375) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-19 | 65.10(2.563) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-20 | 68.28(2.688) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-21 | 72.24(2.844) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-22 | 82.55(3.250) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-23 | 82.55(3.250) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-24 | 95.25(3.750) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-25 | 101.60(4.000) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-26 | 101.60(4.000) | 11.13(0.438) | 17.5(0.69) | 16.0 (0.63) | 7.75(0.305) | 1.5(0.06) |
| R-27 | 107.95(4.250) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-28 | 111.13(4.375) | 12.70(0.500) | 19.1(0.75) | 17.5(0.69) | 8.66(0.341) | 1.5(0.06) |
| R-29 | 114.30(4.500) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-30 | 117.48(4.625) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-31 | 123.83(4.875) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-32 | 127.00 (5.000) | 12.70(0.500) | 19.1(0.75) | 17.5(0.69) | 8.66(0.341) | 1.5(0.06) |
| R-33 | 131.78(5.188) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-34 | 131.78(5.188) | 11.13(0.438) | 17.5(0.69) | 16.0 (0.63) | 7.75(0.305) | 1.5(0.06) |
| R-35 | 136.53(5.375) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-36 | 149.23(5.875) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-37 | 149.23(5.875) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-38 | 157.18(6.188) | 15.88(0.625) | 22.4(0.88) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) |
| R-39 | 161.93(6.375) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-40 | 171.45(6.750) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-41 | 180.98(7.125) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-42 | 190.50(7.500) | 19.05(0.750) | 25.4 (1.00) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) |
| R-43 | 193.68(7.625) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-44 | 193.68(7.625) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-45 | 211.15(8.313) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-46 | 211.15(8.313) | 12.70(0.500) | 19.1(0.75) | 17.5(0.69) | 8.66(0.341) | 1.5(0.06) |
| R-47 | 228.60(9.000) | 19.05(0.750) | 25.4(1.00) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) |
| R-48 | 247.65(9.750) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-49 | 269.88(10.625) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-50 | 269.88(10.625) | 15.88(0.625) | 22.4(0.88) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) |
| R-51 | 279.40(11.000) | 22.23(0.875) | 28.7(1.13) | 26.9(1.06) | 14.81(0.583) | 1.5(0.06) |
| R-52 | 304.80(12.000) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-53 | 323.85(12.750) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-54 | 323.85(12.750) | 15.88(0.625) | 22.4(0.88) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) |
| R-55 | 342.90(13.500) | 28.58(1.125) | 36.6(1.44) | 35.1(1.38) | 19.81(0.780) | 2.3(0.09) |
| R-56 | 381.00(15.000) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-57 | 381.00(15.000) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-58 | 381.00(15.000) | 22.23(0.875) | 28.7(1.13) | 26.9(1.06) | 14.81(0.583) | 1.5(0.06) |
| R-59 | 396.88(15.625) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-60 | 406.40(16.000) | 31.75(1.250) | 39.6(1.56) | 38.1(1.50) | 22.33(0.879) | 2.3(0.09) |
| R-61 | 419.10(16.500) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-62 | 419.10(16.500) | 15.88(0.625) | 22.4(0.88) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) |
| R-63 | 419.10(16.500) | 25.40(1.000) | 33.3(1.31) | 31.8(1.25) | 17.30(0.681) | 2.3(0.09) |
| R-64 | 454.03(17.875) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-65 | 469.90(18.500) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-66 | 469.90(18.500) | 15.88(0.625) | 22.4(0.88) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) |
| R-67 | 469.90(18.500) | 28.58(1.125) | 36.6(1.44) | 35.1(1.38) | 19.81(0.780) | 2.3(0.09) |
| R-68 | 517.53 (20.375) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-69 | 533.40(21.000) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-70 | 533.40(21.000) | 19.05(0.750) | 25.4 (1.00) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) |
| R-71 | 533.40(21.000) | 28.58(1.125) | 36.6(1.44) | 35.1(1.38) | 19.81(0.780) | 2.3(0.09) |
| R-72 | 558.80(22.000) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-73 | 584.20(23.000) | 12.70(0.500) | 19.1(0.75) | 17.5(0.69) | 8.66(0.341) | 1.5(0.06) |
| R-74 | 584.20(23.000) | 19.05(0.750) | 25.4(1.00) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) |
| R-75 | 584.20(23.000) | 31.75(1.250) | 39.6(1.56) | 38.1(1.50) | 22.33(0.879) | 2.3(0.09) |
| R-76 | 673.10(26.500) | 7.95(0.313) | 14.2(0.56) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) |
| R-77 | 692.15(27.250) | 15.88(0.625) | 22.4(0.88) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) |
| R-78 | 692.15(27.250) | 25.40(1.000) | 33.3(1.31) | 31.8(1.25) | 17.30(0.681) | 2.3(0.09) |
| R-79 | 692.15(27.250) | 34.93(1.375) | 44.5(1.75) | 41.4(1.63) | 24.82(0.977) | 2.3(0.09) |
| R-80 | 615.95(24.250) | 7.95(0.313) | 12.7(0.50) | 5.23(0.206) | 1.5(0.06) | |
| R-81 | 635.00 (25.000) | 14.30(0.563) | 19.1(0.75) | 9.58(0.377) | 1.5(0.06) | |
| R-82 | 57.15(2.250) | 11.13(0.438) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) | |
| R-84 | 63.50(2.500) | 11.13(0.438) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) | |
| R-85 | 79.38(3.125) | 12.70(0.500) | 17.5(0.69) | 8.66(0.341) | 1.5(0.06) | |
| R-86 | 90.50(3.563) | 15.88(0.625) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) | |
| R-87 | 100.03(3.938) | 15.88(0.625) | 20.6(0.81) | 10.49(0.413) | 1.5(0.06) | |
| R-88 | 123.83(4.875) | 19.05(0.750) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) | |
| R-89 | 114.30(4.500) | 19.05(0.750) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) | |
| R-90 | 155.58(6.125) | 22.23(0.875) | 26.9(1.06) | 14.81(0.583) | 1.5(0.06) | |
| R-91 | 260.35(10.250) | 31.75(1.250) | 38.1(1.50) | 22.33(0.879) | 2.3(0.09) | |
| R-92 | 228.60(9.000) | 11.13(0.438) | 17.5(0.69) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) |
| R-93 | 749.30(29.500) | 19.05(0.750) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) | |
| R-94 | 800.10(31.500) | 19.05(0.750) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) | |
| R-95 | 857.25(33.750) | 19.05(0.750) | 23.9(0.94) | 12.32(0.485) | 1.5(0.06) | |
| R-96 | 914.40(36.000) | 22.23(0.875) | 26.9(1.06) | 14.81(0.583) | 1.5(0.06) | |
| R-97 | 965.20(38.000) | 22.23(0.875) | 26.9(1.06) | 14.81(0.583) | 1.5(0.06) | |
| R-98 | 1022.35(40.250) | 22.23(0.875) | 26.9(1.06) | 14.81(0.583) | 1.5(0.06) | |
| R-99 | 234.95(9.250) | 11.13(0.438) | 16.0(0.63) | 7.75(0.305) | 1.5(0.06) | |
| R-100 | 749.30(29.500) | 28.58(1.125) | 35.1(1.38) | 19.81(0.780) | 2.3(0.09) | |
| R-101 | 800.10(31.500) | 31.75(1.250) | 38.1(1.50) | 22.33(0.879) | 2.3(0.09) | |
| R-102 | 857.25(33.750) | 31.75(1.250) | 38.1(1.50) | 22.33(0.879) | 2.3(0.09) | |
| R-103 | 914.40(36.000) | 31.75(1.250) | 38.1(1.50) | 22.33(0.879) | 2.3(0.09) | |
| R-104 | 965.20(38.000) | 34.93(1.375) | 41.4(1.63) | 24.82(0.977) | 2.3(0.09) | |
| R-105 | 1022.35(40.250) | 34.93(1.375) | 41.4(1.63) | 24.82(0.977) | 2.3(0.09) |

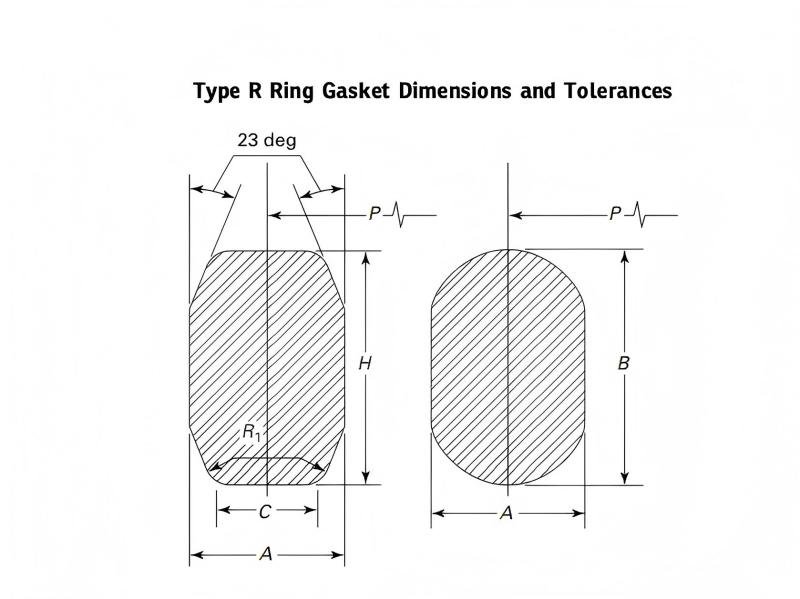

GENERAL NOTE: Tolerances:
- 23 deg = angle, ±0 deg 30 min (±1 /2 deg)
- A = width of ring, ±0.20 mm (±0.008 in.)
- B, H = height of ring, +1.3 mm, −0.5 mm (+0.05 in., −0.02 in.)
- Variation in height throughout the entire circumference of any given ring shall not exceed 0.5 mm (0.02 in.) within these tolerances.
- C = width of flat on octagonal ring, ±0.20 mm (±0.008 in.)
- P = average pitch diameter of ring, ±0.18 mm (±0.007 in.)
- R1 = radius in ring, ±0.5 mm (±0.02 in.)
| Ring Number | ASME B16.5 150 | ASME B16.5 300-600 | ASME B16.5 900 | ASME B16.5 1500 | ASME B16.5 2500 | API 6B 720-960 [Note(1)] | API 6B 2000 | API 6B 3000 | API 6B 5000 | ASME B16.47 Series A 150 | ASME B16.47 Series A 300-600 | ASME B16.47 Series A 900 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R-11 | 1/2 | |||||||||||
| R-12 | [Note (2)] | 1/2 | ||||||||||
| R-13 | 3/4 | 1/2 | ||||||||||
| R-14 | [Note (2)] | 3/4 | ||||||||||
| R-15 | 1 | |||||||||||
| R-16 | 1 | 1 | 1 | 3/4 | 1 | 1 | 1 | 1 | ||||
| R-17 | 1 1/4 | |||||||||||
| R-18 | 1 1/4 | [Note (2)] | 1 1/4 | 1 | 14 | 1 1/4 | 1 1/4 | 1 1/4 | ||||
| R-19 | 1 1/2 | |||||||||||
| R-20 | 112 | [Note(2)] | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | |||||
| R-21 | 114 | |||||||||||
| R-22 | 2 | |||||||||||
| R-23 | 2 | 1 1/2 | 2 | 2 | ||||||||
| R-24 | [Note (2)] | 2 | 2 | 2 | ||||||||
| R-25 | 2 1/2 | |||||||||||
| R-26 | 212 | 2 | 2 1/2 | 2 1/2 | ||||||||
| R-27 | [Note (2)] | 2 1/2 | 2 1/2 | 2 1/2 | ||||||||
| R-28 | 2 1/2 | |||||||||||
| R-29 | 3 | |||||||||||
| R-30 [Note (3)] | 3 | |||||||||||
| R-31 | 3 | 3 | 3 | 3 | 3 | |||||||
| R-32 | 3 | |||||||||||
| R-33 | 3 1/2 | |||||||||||
| R-34 | 3 1/2 | |||||||||||
| R-35 | 3 | 3 | ||||||||||
| R-36 | 4 | |||||||||||
| R-37 | 4 | 4 | 4 | 4 | 4 | 3 1/2 | ||||||
| R-38 | 4 | |||||||||||
| R-39 | 4 | 4 | ||||||||||
| R-40 | 5 | |||||||||||
| R-41 | 5 | 5 | 5 | 5 | 5 | |||||||
| R-42 | 5 | |||||||||||
| R-43 | 6 | |||||||||||
| R-44 | 5 | 5 | ||||||||||
| R-45 | 6 | 6 | 6 | 6 | 6 | |||||||
| R-46 | 6 | 6 | ||||||||||
| R-47 | 6 | |||||||||||
| R-48 | 8 | |||||||||||
| R-49 | 8 | 8 | 8 | 8 | 8 | |||||||
| R-50 | 8 | 8 | ||||||||||
| R-51 | 8 | |||||||||||
| R-52 | 10 | |||||||||||
| R-53 | 10 | 10 | 10 | 10 | 10 | |||||||
| R-54 | 10 | 10 | ||||||||||
| R-55 | 10 | |||||||||||
| R-56 | 12 | |||||||||||
| R-57 | 12 | 12 | 12 | 12 | 12 | |||||||
| R-58 | 12 | |||||||||||
| R-59 | 14 | |||||||||||
| R-60 | 12 | |||||||||||
| R-61 | 14 | 14 | 14 | 14 | ||||||||
| R-62 | 14 | |||||||||||
| R-63 | 14 | |||||||||||
| R-64 | 16 | |||||||||||
| R-65 | 16 | 16 | 16 | |||||||||
| R-66 | 16 | 16 | ||||||||||
| R-67 | 16 | |||||||||||
| R-68 | 18 | |||||||||||
| R-69 | 18 | 18 | 18 | |||||||||
| R-70 | 18 | 18 | ||||||||||
| R-71 | 18 | |||||||||||
| R-72 | 20 | |||||||||||
| R-73 | 20 | 20 | 20 | |||||||||
| R-74 | 20 | 20 | ||||||||||
| R-75 | 20 | |||||||||||
| R-76 | 24 | |||||||||||
| R-77 | 24 | |||||||||||
| R-78 | 24 | |||||||||||
| R-79 | 24 | |||||||||||
| R-80 | 22 | |||||||||||
| R-81 | 22 | |||||||||||
| R-82 | 1 | |||||||||||
| R-84 | 1 1/2 | |||||||||||
| R-85 | 2 | |||||||||||
| R-86 | 2 1/2 | |||||||||||
| R-87 | 3 | |||||||||||
| R-88 | 4 | |||||||||||
| R-89 | 35 | |||||||||||
| R-90 | 5 | |||||||||||
| R-91 | 10 | |||||||||||
| R-92 | ||||||||||||
| R-93 | 26 | |||||||||||
| R-94 | 28 | |||||||||||
| R-95 | 30 | |||||||||||
| R-96 | 32 | |||||||||||
| R-97 | 34 | |||||||||||
| R-98 | 36 | |||||||||||
| R-99 | 8 | 8 | ||||||||||
| R-100 | 26 | |||||||||||
| R-101 | 28 | |||||||||||
| R-102 | 30 | |||||||||||
| R-103 | 32 | |||||||||||
| R-104 | 34 | |||||||||||
| R-105 | 36 |
GENERAL NOTE: End flanges to API 6D and API 600 use gaskets for equivalent pipe size under ASME B16.5 or ASME B16.47 Series A.
NOTES:
- Class 720, 960, and 10000 flanges to API 6B are obsolete. Data are for information only.
- There are no Class 900 flanges in NPS 1 ∕ 2 through NPS 21 ∕ 2 (use Class 1500).
- R-30 is for lapped joint only.
Materials Used for ASME B16.20 Type r Ring Gaskets
- Soft Iron
- Carbon Steel & Low Alloy Steels
- Stainless Steel
In the oil and gas, chemical, and seawater system industries, CRA (Corrosion-Resistant Alloy) refers to special metallic materials with high corrosion resistance, such as:
- Inconel series (e.g., 625, 718)
- Incoloy series (e.g., 825, 925)
- Monel 400
- Hastelloy series (e.g., C276, C22)
- Duplex / Super Duplex (e.g., 2205, 2507)
- 904L
- Alloy 20
- Titanium alloys
| Material | Identification | DIN | B.S. | ASTM / UNS | Hardness Max (HB) | Hardness Max (HRB) | Min Temp (C) | Max Temp (C) | Density (g/cm3) |
|---|---|---|---|---|---|---|---|---|---|
| Soft Iron | D | 90 | 56 | -60 | 500 | 7.85 | |||
| Low Carbon Steel | S | 120 | 68 | -40 | 500 | 7.85 | |||
| ASTM A182 F5 | F5 | 1.7362 | F5 | 130 | 72 | -40 | 650 | 7.9 | |
| SS304 | S304 | 1.4301 | 304S15/16 | S30400 | 160 | 83 | -250 | 550 | 7.9 |
| SS304L | S304L | 1.4306 | 304S11 | S30403 | 160 | 83 | -250 | 550 | 7.9 |
| SS309 | S309 | 1.4828 | 309S24 | S30900 | 160 | 83 | -250 | 1000 | 7.9 |
| SS316 | S316 | 1.4401 | 316S16 | S31600 | 160 | 83 | -100 | 1000 | 7.9 |
| SS316L | S316L | 1.4404 | 316S11/13 | S31603 | 160 | 83 | -100 | 550 | 7.9 |
| SS316Ti | S316Ti | 1.4571 | 320S31 | S31635 | 160 | 83 | -100 | 550 | 7.8 |
| SS321 | S321 | 1.4541 | 321S12/49/87 | S32100 | 160 | 83 | -250 | 850 | 7.9 |
| SS347 | S347 | 1.455 | 347S31 | S34700 | 160 | 83 | -250 | 850 | 7.9 |
| SS410 | S410 | 1.4006 | 410S21 | S41000 | 170 | 86 | -20 | 650 | 7.8 |
| 254 SMO | 6Mo | 1.4547 | S31254 | 180 | 89 | -100 | 550 | 8 | |
| 904L | S904L | 1.4539 | SUS890L | N08904 | 180 | 89 | -250 | 400 | 8 |
| Duplex F51 | F51 | 1.4462 | 31853 | S31803 / S32205 | 230 | 99 | -40 | 300 | 7.8 |
| Super Duplex F53 | F53 | 1.441 | S32750 | 230 | 99 | -40 | 300 | 7.8 | |
| Super Duplex F55 | F55 | 1.4501 | S32760 | 250 | 102 | -40 | 300 | 7.8 | |
| Brass (CuZn37) | CuZn37 | 2.0321 | CZ108 | C27200 | 60 | -100 | 350 | 8.5 | |
| Nickel 200 | Ni200 | 2.4066 | NA11 | N02200 | 110 | 62 | -250 | 600 | 8.9 |
| Monel 400 | MONEL400 | 2.436 | NA13 | N04400 | 160 | 83 | -250 | 600 | 8.8 |
| Inconel 600 | INC600 | 2.4816 | NA14 | N06600 | 160 | 83 | -100 | 950 | 8.4 |
| Inconel 625 | INC625 | 2.4856 | NA21 | N06625 | 210 | 95 | -50 | 650 | 8.44 |
| Inconel 718 | INC718 | N07718 | 160 | 83 | -125 | 700 | 8.24 | ||
| Incoloy 800 | INC800 | 1.4876 | NA15 | N08800 | 160 | 83 | -100 | 850 | 8 |
| Incoloy 825 | INC825 | 2.4858 | NA16 | N08825 | 195 | 92 | -100 | 450 | 8.14 |
| Hastelloy B2 | HB2 | 2.4617 | N10665 | 230 | 99 | -200 | 450 | 9.2 | |
| Hastelloy C276 | HC276 | 2.4819 | N10276 | 210 | 95 | -200 | 400 | 8.9 | |
| Titanium Grade 2 | Ti2 | 3.7035 | TA2 | R50400 | 215 | 96 | -250 | 350 | 4.5 |
Application
Oil & Gas: Wellhead equipment, manifolds, valves, API 6A systems
Refinery & Petrochemical: High-temperature steam, high-pressure reactors
Marine & Offshore: Subsea equipment, FPSO systems, corrosive media
Power Generation: Boilers, heat exchangers, turbines
High-Pressure Piping: Class 600–2500 flange connections
Markings & Identification
Each gasket includes clear markings according to ASME B16.20:
- Gasket Number (e.g., R-21)
- Profile (Octagonal / Oval)
- Material Code (e.g., S316, INC625)
- Heat Number
- Manufacturer Mark: MILLSFORGE
- Standard: ASME B16.20
Example marking:
R-45 OCT S316 ASME B16.20 HEAT 2548 MILLSFORGE
Why Choose MillsForge for ASME B16.20 Type r Ring Gaskets?
MillsForge provides high-quality ASME B16.20 Type R Ring Gaskets, manufactured in compliance with ASME standards and supported by ISO 9001:2005 quality management. Whether you need octagonal or oval profiles, and regardless of material—carbon steel, stainless steel, or advanced corrosion-resistant alloys—MillsForge can meet your high-pressure, high-temperature, refinery, and offshore application requirements.
What We Offer
- Fully compliant ASME B16.20 Type R ring gaskets
- Octagonal and oval profile options
- Wide material selection for high-pressure and corrosive environments
- Precision machining with strict dimensional and surface-finish control
- Fast delivery and global supply capability
MillsForge ensures that every Type R ring gasket meets the highest industry standards for sealing reliability, durability, and safety.
